For sausage, bacon, beef, pork, rabbit, chicken, duck, fish, mutton, venison, liver, etc.
Here are standard drying room solutions for dry less than 3000kg a batch, if you require larger production capacity, please contact us for more information.
Different heat sources available, Generally are electricity, steam, natural gas, diesel, biomass pellets, coal, firewood, air energy, cold air. If there are other heat source, please also contact us for design.(You can click each heat source to check our drying room)
This solutions more used for hanging stuffs, if you are drying stuffs on trays, you can check fruits or spices solutions.
Please check our video here, or you can visit our YOUTUBE channel to check more.
Tips(You can visit our FAQs page to learn more):
How long does it take to dry a batch of stuffs?
We can offer you drying time range and drying process of each stuff based on our experience at Deyang city. But you must to do trial drying and debugging equipment before production.
Deyang is located in mid-latitude and belongs to the subtropical humid monsoon area. Altitude is approximately 491m. Annual average temperature is 15℃-17℃; January is 5℃-6℃; and July is 25℃. Annual average relative humidity 77%
But there still are many factors influence drying time and drying process:
1. Drying temperature.
2. Humidity domestic and water content of stuff.
3. Hot air speed.
4. Stuffs properties.
5. Shape and thickness of stuff itself.
6. Thickness of material stacked.
7. Your propiaded drying process for make flavor food.
You can imagine that if you dry clothes outdoors, the clothes will dry quickly when the temperature is higher/the humidity is lower/the wind is stronger; of course, silk pants will dry faster than jeans; bedding will dry slower, etc.
But it has limits/ranges, for example, if temperature exceeds 100℃, stuffs will burn; if wind is too strong, stuffs will be blown away and won't dry evenly, etc.
The Starlight Series Drying Room
1.Description
The Starlight series drying room is a leading hot-air convection drying room that developed by our company special for hanging stuffs, which is advanced both domestically and internationally, it adopts a design with heat circulation from top to bottom, allowing the recycled hot air to evenly heat all stuffs in all directions, it can quickly increase temperature and facilitate rapid dehydration.the temperature and humidity are automatically controlled, and equipped with a waste heat recovery device, greatly reducing energy consumption during machine running. This series has obtained one national invention patent and three utility model patent certificates.
2.Advantages
1.The control system adopts PLC programming + LCD touch screen, which can sat up to 10 segments of temperature and humidity settings, parameters can be adjusted according to the different properties at the stuff that make the drying process is not affected by external environmental factors, ensuring excellent color and high quality of the finished product.
2.One button start for unattended operation, automation, The machine stops after finish set drying program. It can be equipped with a remote control system, mobile app remote monitoring.
3.Upper and lower hot air circulation heating, ensuring uniform heating of all stuffs in the drying room, avoiding uneven temperature and mid-process adjustment.
4.The circulation fan take a high-temperature resistant, high-airflow, long life axial flow fan, ensuring sufficient heat and rapid temperature rise in the drying room.
5.Various sources can be used, such as air heat pumps, natural gas, steam, electricity, biomass pellet, coal, firewood, diesel, hot water, thermal oil, methanol, gasoline, etc., depending on the local conditions.
6.Modular drying room which consisted of a hot air generator + drying room + drying pushcart, Low transportation cost and convenient installation, it can be assembled by two people in one day.
7.The shells of hot air generator and drying room both are made of high-density fire-resistant insulation cotton + sprayed/stainless steel sheet which are beautiful and durable.
8.The integrated hot air generator has a built in hydrophilic aluminum foil waste heat recovery device, which aims to recover heat from the moisture, can reduce energy consumption. it is save more 50% energy than direct exhaust drying rooms
3.Specification sheet
|
No. |
item |
Unit |
Model |
||||
|
1、 |
Name |
/ |
XG500 |
XG1000 |
XG1500 |
XG2000 |
XG3000 |
|
2、 |
Structure |
/ |
（Van type） |
||||
|
3、 |
Outer dimensions (L*W*H) |
mm |
2200×4200×2800 |
3200×5200×2800 |
4300×6300×2800 |
5400×6300×2800 |
6500×7400×2800 |
|
4、 |
Fan power |
KW |
0.55*2+0.55 |
0.9*3+0.9 |
1.8*3+0.9*2 |
1.8*4+0.9*2 |
1.8*5+1.5*2 |
|
5、 |
Hot air temperature range |
℃ |
Atmosphere temperature~120 |
||||
|
6、 |
Loading capacity（Wet stuff） |
kg/ batch |
500 |
1000 |
1500 |
2000 |
3000 |
|
7、 |
Effective drying volume |
m3 |
16 |
30 |
48 |
60 |
84 |
|
8、 |
Number of pushcarts |
sets |
4 |
9 |
16 |
20 |
30 |
|
9、 |
Hanging cart dimensions (L*W*H) |
mm |
1200*900*1820mm |
||||
|
10、 |
Material of hanging cart |
/ |
（304 stainless steel） |
||||
|
11、 |
Hot air machine model |
/ |
5 |
10 |
20 |
20 |
30 |
|
12、 |
Outer dimension of Hot air machine |
mm |
|||||
|
13、 |
Fuel/medium |
/ |
Air energy heat pump, natural gas, steam, electricity, biomass pellet, coal, wood, hot water, thermal oil, methanol, gasoline and diesel |
||||
|
14、 |
Heat output of hot air machine |
Kcal/h |
5×104 |
10×104 |
20×104 |
20×104 |
30×104 |
|
15、 |
voltage |
/ |
380V 3N |
||||
|
16、 |
Temperature range |
℃ |
Atmosphere~120 |
||||
|
17、 |
Control system |
/ |
PLC+7（7 inch touch screen） |
||||
4.Dimension Drawing

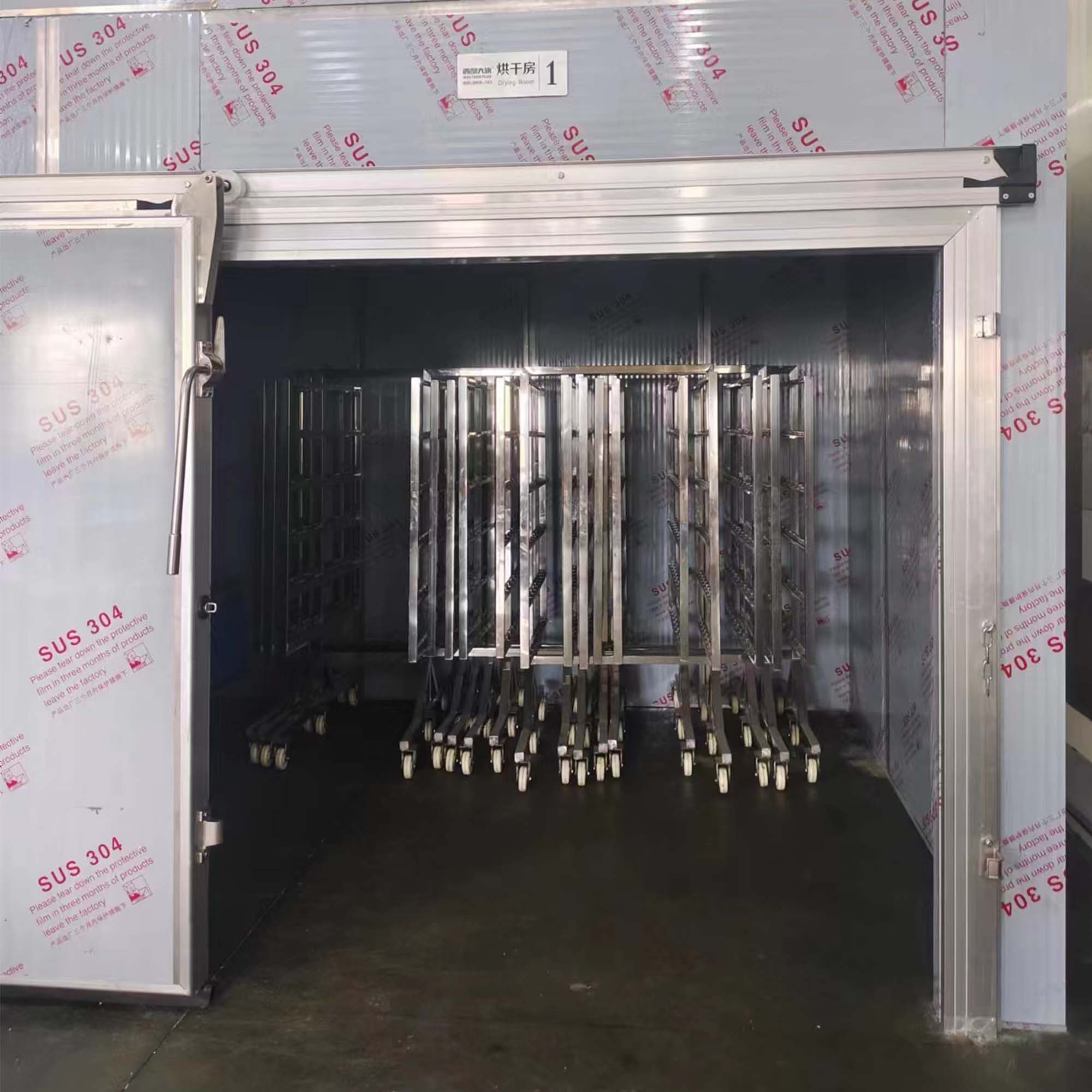

Meat Products Drying Applications Photos
